Navigate branching logic

Move blocks

  1. Drag and drop block to the new location.
    move one block
  2. To include an entire branch of blocks, press Shift while dragging.
    move include multiple blocks

Copy blocks

  1. Hold the Control or Command key while dragging the block.
    The original block will remain and a copy will be inserted in the new location.
    copy one block
  2. To include an entire branch of blocks, press Shift and Control / Command.
    copy multiple blocks

Zoom

  1. Hold Shift while scrolling up or down.
    zoom branching

Reset/undo/redo logic

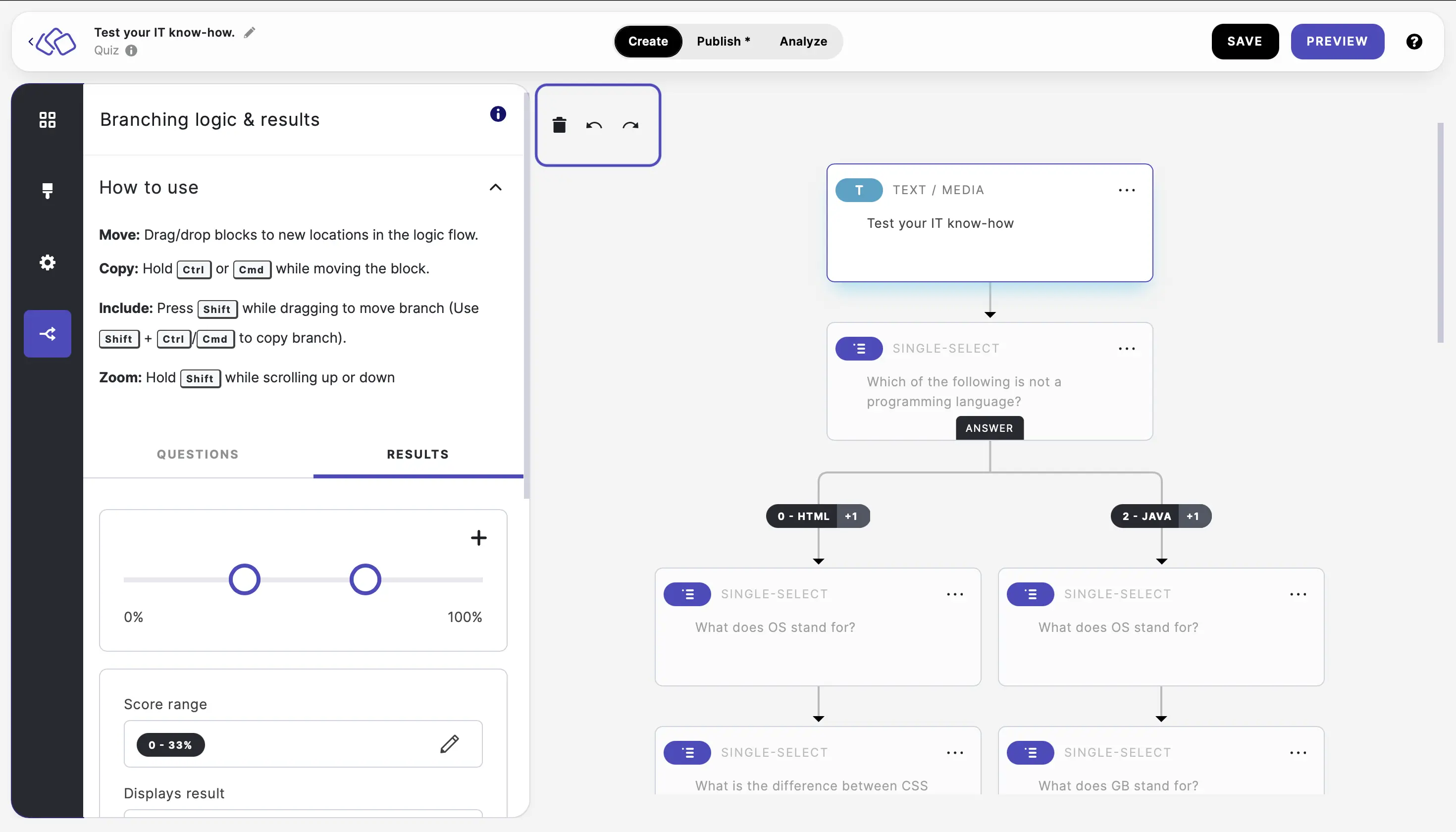

reset, undo, redo logic

  1. Click on the trash can icon to delete the logic.
  2. Click on the back arrow icon to undo the last logic change.
  3. Click on the forward arrow icon to redo the last logic change.

Remove a block from the logic

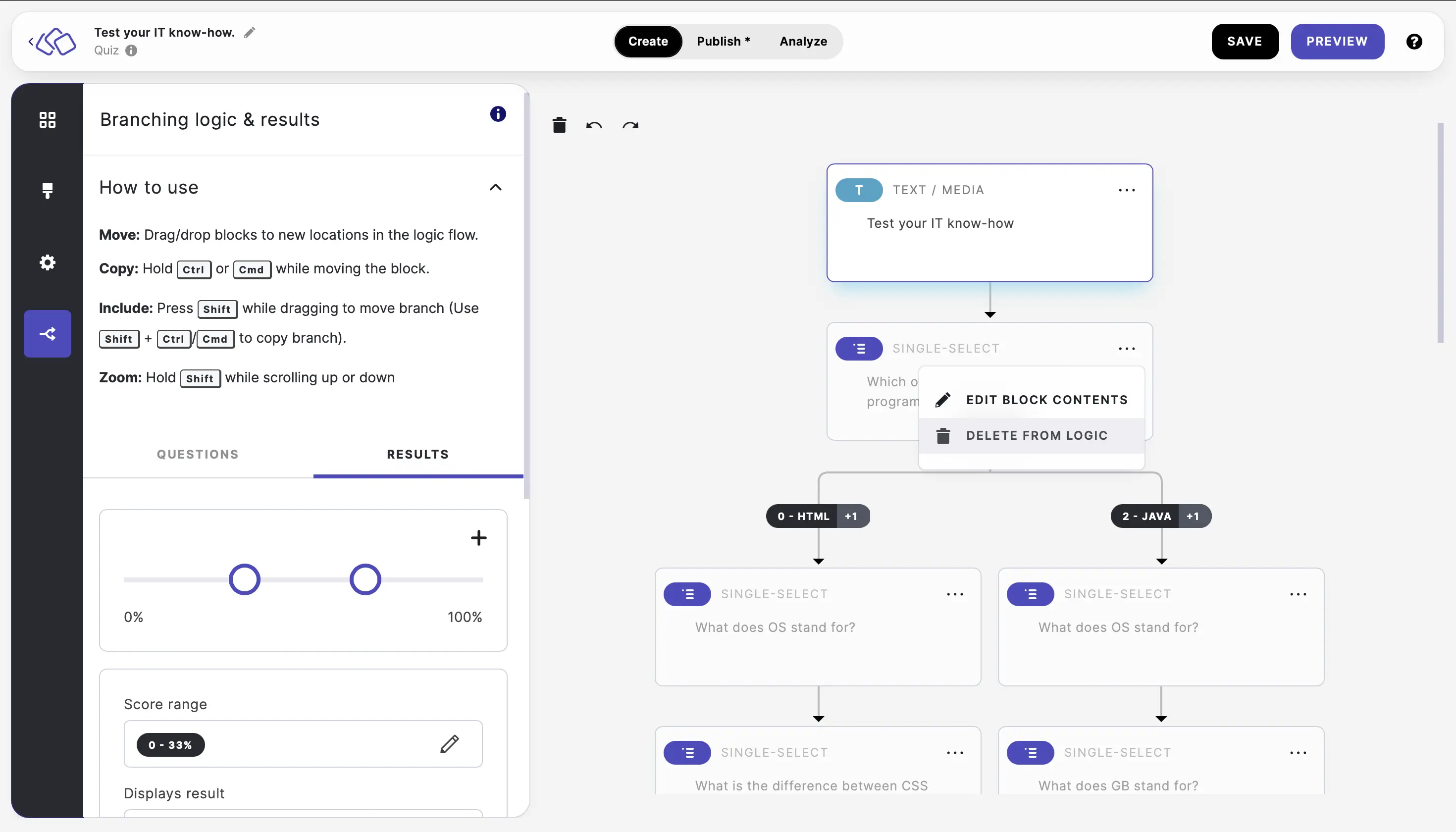

remove block from logic

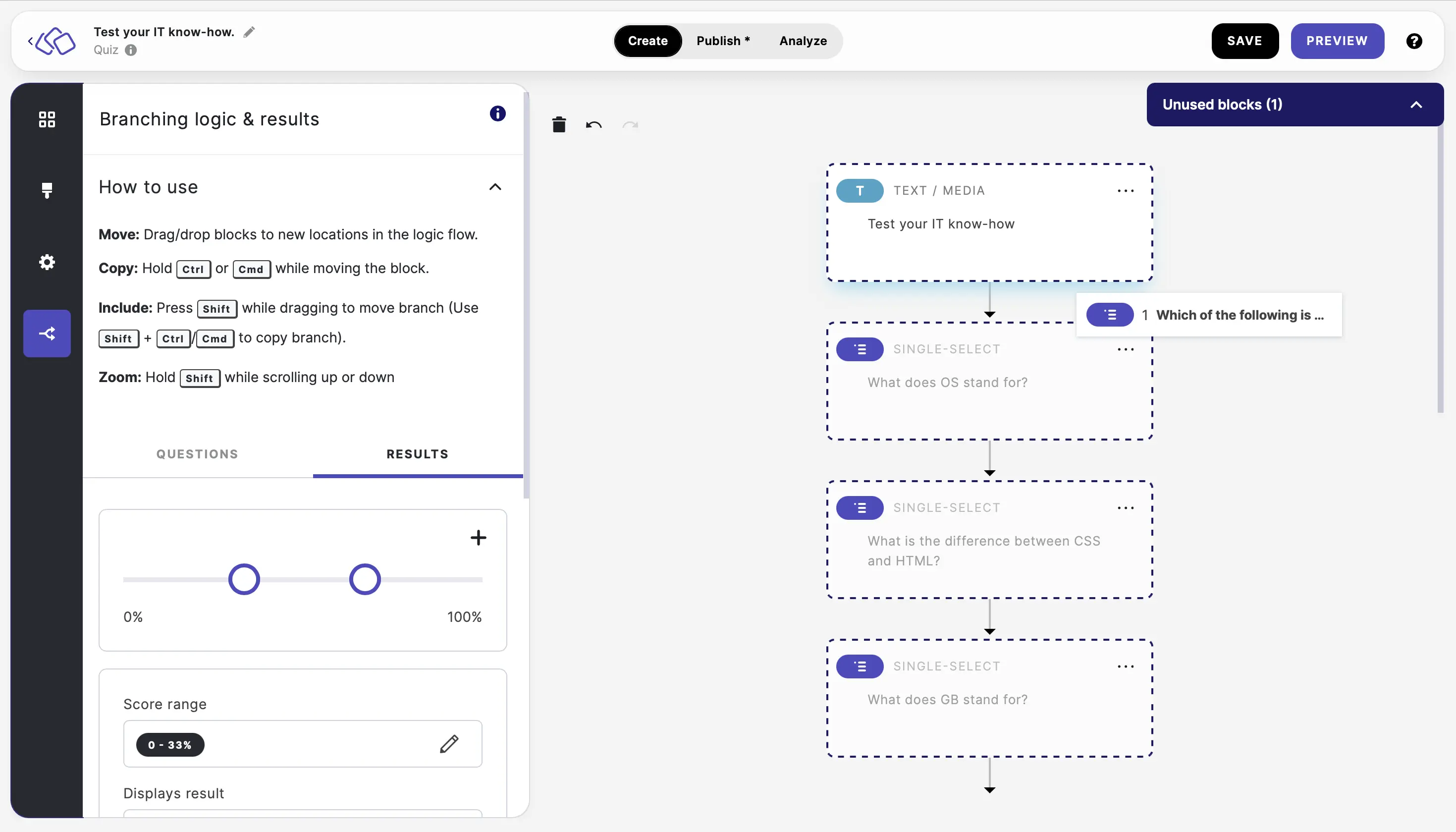

add block back into logic

  1. Click on the three dots on any block.
  2. Click on DELETE FROM LOGIC.
  3. The block will now appear under the Unused blocks list in the top right corner.
  4. To add the block back into the logic, click on the block, drag, and drop it to the desired position.
